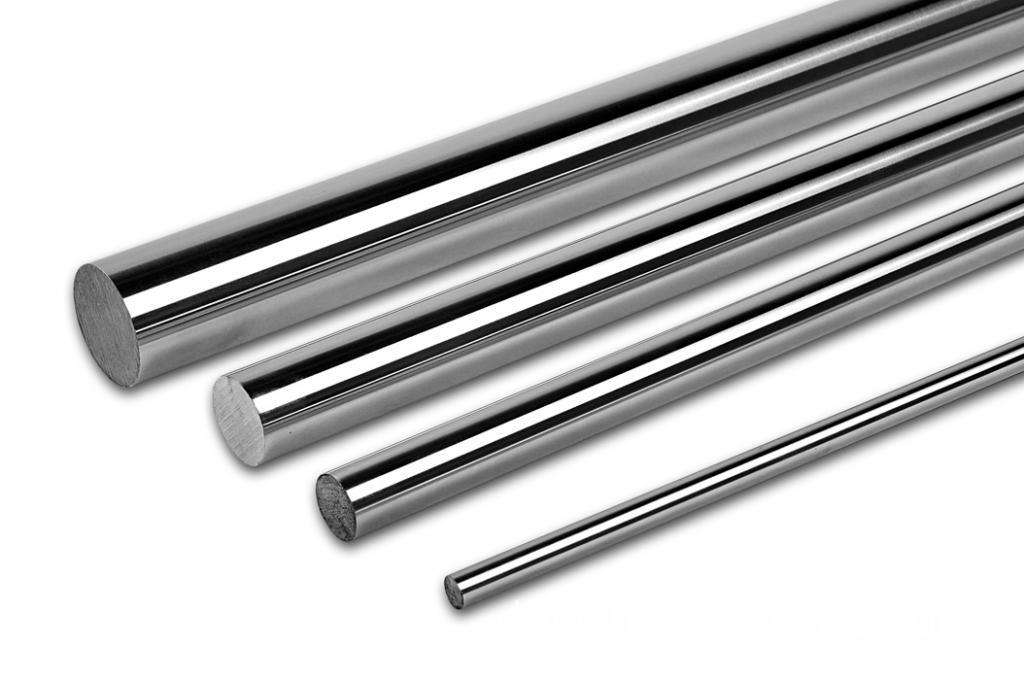

SF系列
發布時間：2018/11/24
| 型號 | 軸徑 | 尺寸(mm) | |||||||||||||
| d(mm) | 公差 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 1000 | 1200 | 1300 | 1500 | 2000 | |
| (μm) | |||||||||||||||
| SF6 | φ6 | -0.012 | ○ | ○ | ○ | ○ | ◎ | - | - | - | - | - | - | - | - |
| SF8 | φ8 | 0.357142857 | ○ | ○ | ○ | ○ | ◎ | - | - | - | - | - | - | - | - |
| SF10 | φ10 | 0.357142857 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ◎ | ◎ | ○ | ◎ | - |
| SF12 | φ12 | 0.352941176 | - | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ◎ | ◎ | ○ | ◎ | - |
| SF13 | φ13 | 0.352941176 | - | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ◎ | ◎ | ○ | ◎ | - |
| SF16 | φ16 | 0.352941176 | - | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ◎ | ◎ | ○ | ◎ | - |
| SF20 | φ20 | 0.35 | - | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ◎ | ◎ | ○ | ◎ | ◎ |
| SF25 | φ25 | 0.35 | - | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ◎ | ◎ | ○ | ◎ | ◎ |
| SF30 | φ30 | 0.35 | - | - | ○ | ○ | ○ | ○ | ○ | ○ | ◎ | ◎ | ○ | ◎ | ◎ |
| SF35 | φ35 | 0.36 | - | - | - | - | ○ | ○ | ○ | ○ | ◎ | ◎ | ○ | ◎ | ◎ |
| SF40 | φ40 | 0.36 | - | - | - | - | ○ | ○ | ○ | ○ | ◎ | ◎ | ○ | ◎ | ◎ |
| SF50 | φ50 | 0.36 | - | - | - | - | ○ | ○ | ○ | ○ | ◎ | ◎ | ○ | ◎ | ◎ |
| SF60 | φ80 | 0.344827586 | - | - | - | - | - | - | - | - | ◎ | ◎ | ○ | ◎ | ◎ |
| SF60 | φ80 | 0.344827586 | - | - | - | - | - | - | - | - | ◎ | ◎ | ○ | ◎ | ◎ |
