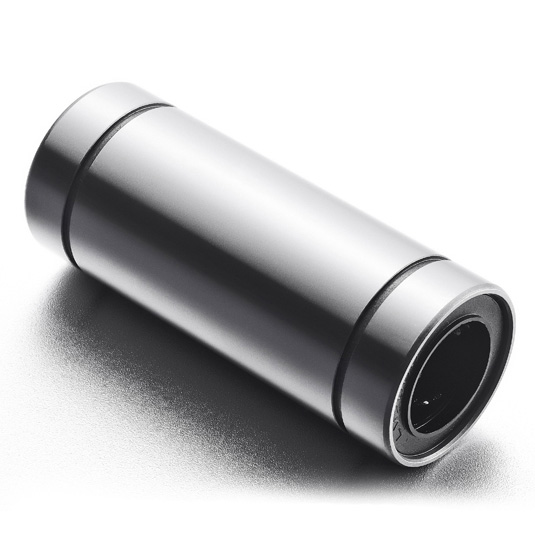

加長型-歐洲標準
發布時間：2018/12/24

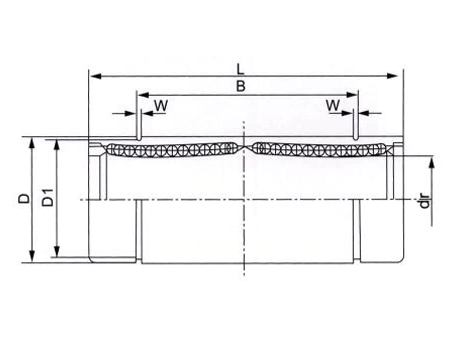

| 型號 | 球例數 | 重量?（g） | 主要尺寸 | 徑向?跳動 | 基本額定載荷 | ||||||||||
| 內徑 | 內徑 | 外徑 | 外徑 | 長度 | 長度 | 外止動槽 | 外止動槽 | 外止動槽 | W | (MAX.) | C(kgf) | Co(kgf) | |||
| dr | 公差 | D | 公差 | L | 公差 | B | 公差 | D1 | |||||||
| LME8LUU | 4 | 40 | 8 | 0.008 | 16 | 0?-0.009 | 46 | 0?-0.30 | 33 | 0?-0.30 | 15.2 | 1.1 | 0.015 | 43 | 82 |
| LME10LUU | 4 | 62 | 10 | 0.008 | 19 | 0?-0.011 | 55 | 0?-0.30 | 44 | 0?-0.30 | 18 | 1.3 | 0.015 | 60 | 112 |
| LME12LUU | 4 | 80 | 12 | 0.008 | 22 | 0?-0.011 | 61 | 0?-0.30 | 45.8 | 0?-0.30 | 21 | 1.3 | 0.015 | 83 | 160 |
| LME16LUU | 5 | 115 | 16 | 0.01 | 26 | 0?-0.011 | 68 | 0?-0.30 | 49.8 | 0?-0.30 | 24.9 | 1.3 | 0.015 | 94 | 182 |
| LME20LUU | 5 | 180 | 20 | 0.01 | 32 | 0?-0.013 | 80 | 0?-0.30 | 61 | 0?-0.30 | 30.5 | 1.6 | 0.017 | 140 | 280 |
| LME25LUU | 6 | 430 | 25 | 0.011 | 40 | 0?-0.013 | 112 | 0?-0.40 | 82 | 0?-0.40 | 38 | 1.85 | 0.017 | 160 | 320 |
| LME30LUU | 6 | 615 | 30 | 0.011 | 47 | 0?-0.013 | 123 | 0?-0.40 | 104.2 | 0?-0.40 | 44.5 | 1.85 | 0.017 | 255 | 560 |
| LME40LUU | 6 | 1400 | 40 | 0.012 | 62 | 0?-0.015 | 151 | 0?-0.40 | 121.2 | 0?-0.40 | 59 | 2.15 | 0.02 | 350 | 820 |
| LME50LUU | 6 | 2320 | 50 | 0.012 | 75 | 0?-0.015 | 192 | 0?-0.40 | 155.2 | 0?-0.40 | 72 | 2.65 | 0.02 | 620 | 1622 |
| LME60LUU | 6 | 3920 | 60 | 0.012 | 90 | 0?-0.022 | 209 | 0?-0.40 | 170 | 0?-0.40 | 86.5 | 3.15 | 0.025 | 770 | 2040 |
