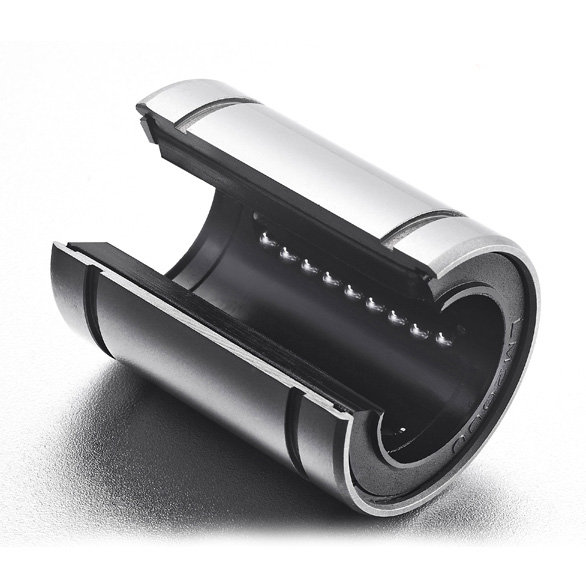

開口型-歐洲標準
發布時間：2018/12/24
| 型號 | 球例數 | 重量?（g） | 主要尺寸 | 徑向?跳動 | 基本額定載荷 | ||||||||||||
| 內徑 | 內徑 | 外徑 | 外徑 | 長度 | 長度 | 外止動槽 | 外止動槽 | 外止動槽 | W | h1 | θ | (MAX.) | C(kgf) | Co(kgf) | |||

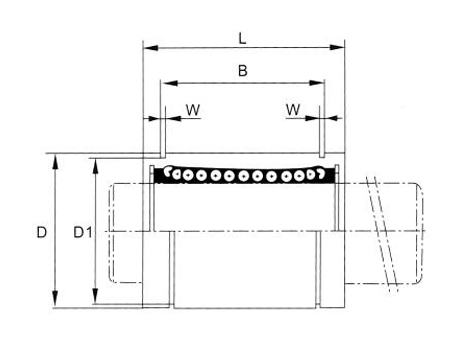

| dr | 公差 | D | 公差 | L | 公差 | B | 公差 | D1 | |||||||||
| LME10OPUU | 3 | 23 | 10 | +0.008?0 | 19 | 0?-0.009 | 29 | 0?-0.20 | 22 | 0?-0.20 | 18 | 1.3 | 6.8 | 80° | 0.012 | 38 | 47 |
| LME12OPUU | 3 | 32 | 12 | +0.008?0 | 22 | 0?-0.009 | 32 | 0?-0.20 | 22.9 | 0?-0.20 | 21 | 1.3 | 7.5 | 78° | 0.012 | 52 | 79 |
| LME16OPUU | 4 | 44 | 16 | +0.008?0.001 | 26 | 0?-0.009 | 36 | 0?-0.20 | 24.9 | 0?-0.20 | 24.9 | 1.3 | 10 | 78° | 0.012 | 59 | 91 |
| LME20OPUU | 4 | 75 | 20 | +0.008?0.001 | 32 | 0?-0.011 | 45 | 0?-0.20 | 31.5 | 0?-0.20 | 30.3 | 1.6 | 10 | 60° | 0.015 | 88 | 140 |
| LME25OPUU | 5 | 181 | 25 | +0.011?0.001 | 40 | 0?-0.011 | 58 | 0?-0.30 | 44.1 | 0?-0.30 | 37.5 | 1.85 | 12.5 | 60° | 0.015 | 100 | 160 |
| LME30OPUU | 5 | 272 | 30 | +0.011?0.001 | 47 | 0?-0.011 | 68 | 0?-0.30 | 52.1 | 0?-0.30 | 44.5 | 1.85 | 12.5 | 60° | 0.015 | 160 | 280 |
| LME40OPUU | 5 | 600 | 40 | +0.013?0.002 | 62 | 0?-0.013 | 80 | 0?-0.30 | 60.6 | 0?-0.30 | 59 | 2.15 | 16.8 | 60° | 0.017 | 220 | 400 |
| LME50OPUU | 5 | 970 | 50 | +0.013?0.002 | 75 | 0?-0.013 | 100 | 0?-0.30 | 77.6 | 0?-0.30 | 72 | 2.65 | 21 | 60° | 0.017 | 390 | 810 |
| LME60OPUU | 5 | 1580 | 60 | +0.013?0.002 | 90 | 0?-0.022 | 125 | 0?-0.40 | 101.7 | 0?-0.40 | 86.5 | 3.15 | 27.2 | 60° | 0.02 | 480 | 1020 |
